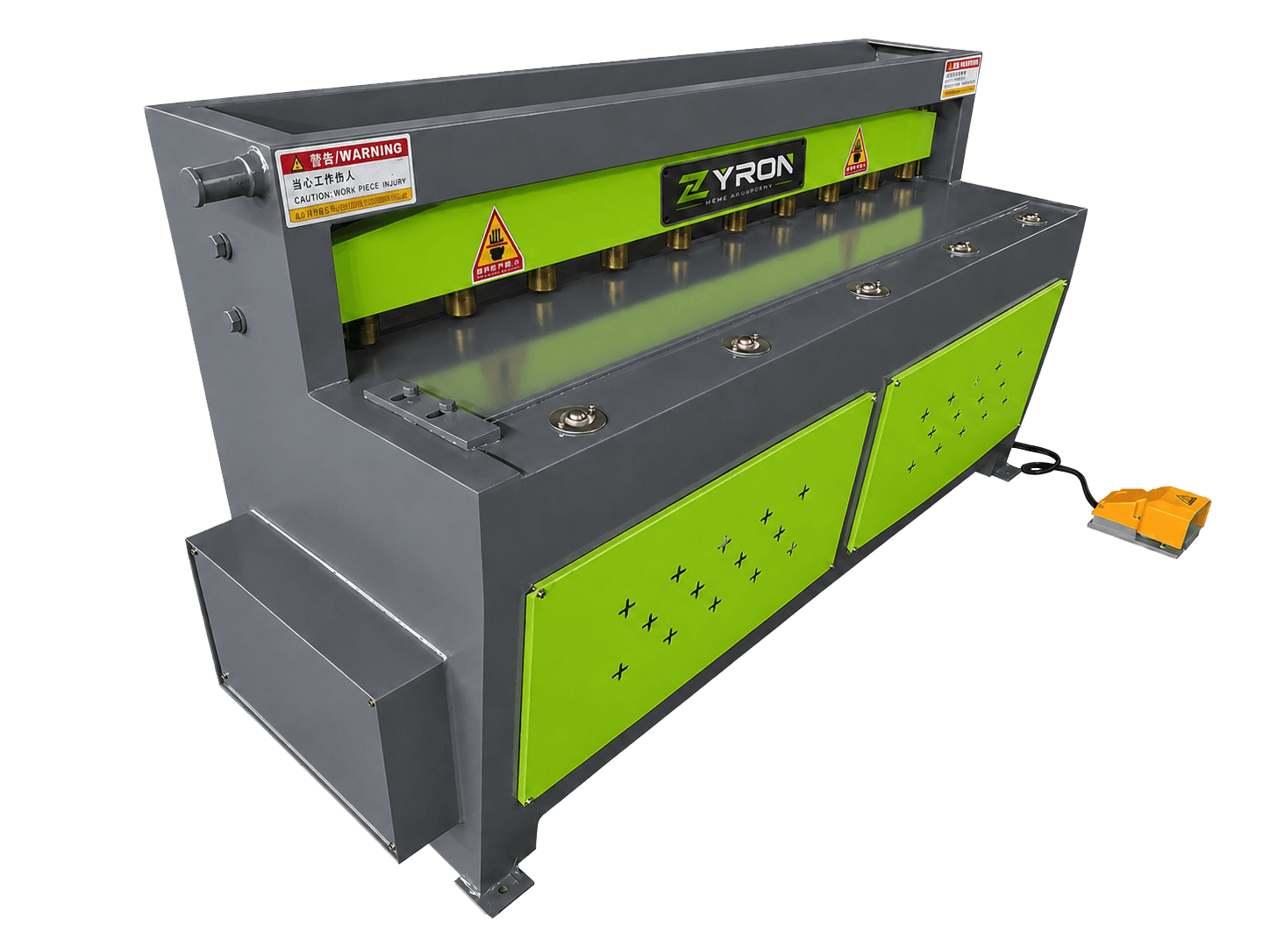

Compact Q11G Sheet Metal Cutting
Small Electric Shearing Machine
Compact Electric Sheet Metal Shear for Thin Sheet Cutting
A compact motor-driven shearing machine for straight cutting of thin sheet before folding, lock forming, roofing, signage and enclosure assembly. The Q11G series gives small workshops a powered alternative to manual shearing without the size and system complexity of a hydraulic shear.
Eight Verified Q11G Models600–2500 mm Published WidthsElectric Guillotine-Type CuttingCompact Workshop Positioning
Q11G Series
Electric Drive
Thin Sheet Cutting
Product Overview
Compact powered cutting for everyday sheet metal work.
The Q11G small sheet metal shearing machine uses an all-steel welded body and a motor-driven mechanical cutting system to make straight cuts in suitable thin sheet. It provides a practical middle ground between a manual shear and a larger hydraulic system for workshops that cut regularly but do not need heavy-plate capacity.
The motor, cycloidal pinwheel reducer, brake and mechanical transmission work together to form a straightforward motorized sheet metal shear drive. Upper and lower high-alloy tool-steel blades perform the cut, while the adjustable back gauge supports repeated blank positioning after the required dimension is set.
This electric sheet metal cutting machine is also described as a mini electric shearing machine or thin sheet metal shearing machine when compact placement is the priority. It is suited to blanks prepared before folding, lock forming, roofing, sign making, enclosure production and HVAC fabrication, but model selection must still follow the actual material type, grade, strength, thickness, cutting length and daily work pattern.
Daily Workshop Challenges
What Problems Does This Small Electric Shear Solve?
Large shears do not fit every workshop
The compact range helps buyers match cutting width to limited floor space and small-batch work.
Repeated blank sizes need positioning support
The published 500 mm back-gauge travel supports repeat positioning after the required size is set.
Thin-sheet work needs the right machine class
Q11G models provide a focused alternative to oversizing a hydraulic shear for suitable thin-sheet production.
Compact Production Positioning
Compact Electric Sheet Metal Cutting for Small Workshops
The Q11G small electric shear is positioned for flexible thin-sheet straight cutting, a compact layout and everyday small- or mixed-batch production. Powered cutting reduces repeated manual effort while the foot control keeps the operator's hands available for supporting and positioning the sheet before each cut.
Published 2 mm models cover 600, 800, 1000, 1300, 1500 and 1600 mm cutting widths. Their listed shearing frequency is 30 cycles per minute; that figure describes machine cycling under the published configuration, not guaranteed finished-part output.
Longer Q11G entries have different published capacity: Q11G-1.5 x 2000 is listed at 1.5 mm and Q11G-1.2 x 2500 at 1.2 mm. This makes model-specific selection more reliable than treating every machine as a 2mm small electric shearing machine.
For buyers searching for a compact sheet metal shear for small workshop use or an electric sheet metal shear for small batch production, the correct choice starts with actual material strength, thickness, cutting length, blade condition and required daily cutting pattern.
Electric Cutting Mechanism
How the Electric Shearing Mechanism Works
01
Support and position the sheet
Place suitable material on the front table and align the required cut.
02
Set the back gauge
Use the published 500 mm back-gauge travel to support repeat blank positioning.
03
Start the electric drive
The integrated motor, reducer and chain drive transmit the cutting movement.
04
Complete the guillotine cut
High-alloy tool-steel blades shear the confirmed thin sheet in a straight cutting cycle.
05
Move to forming or assembly
Prepared blanks can continue to folding, lock forming, roofing, signage or cabinet work.
Application Scenarios
Small Electric Shear Applications for Thin Sheet Work
01
HVAC and Duct Fabrication
Use a small electric shear for HVAC duct fabrication to prepare confirmed galvanized or aluminum blanks before folding, lock forming, flange forming and final ventilation-system assembly.
02
Roofing and Architectural Sheet Work
Cut suitable thin roofing, flashing and architectural sheet into straight blanks before bending, forming or site installation.
03
Sign Making and Metal Panel Preparation
Prepare confirmed aluminum, galvanized or other thin panels for trimming, bending, lettering and signage assembly.
04
Electrical Cabinet and Enclosure Fabrication
Cut suitable thin enclosure blanks before punching, bending, joining and electrical cabinet assembly.
05
General Sheet Metal Fabrication
Prepare straight blanks for covers, guards, brackets and other light-fabrication parts before downstream forming or joining.
06
Repair and Maintenance Workshops
Make suitable replacement panels, covers and repair parts with powered straight cutting in a compact maintenance workspace.
07
Small-Batch and Mixed Production
Use the adjustable back gauge and electric drive for repeated blank sizes while retaining flexibility across short or mixed runs.
08
Material Preparation Before Forming
Cut confirmed sheet into straight blanks before folding, lock forming, rolling, punching or enclosure assembly.
Material Review
What Materials Can This Q11G Electric Shear Cut?
Actual cutting capacity depends on material type, grade, tensile strength, hardness or temper, sheet thickness, cutting length, blade condition and blade clearance. The published mild-steel-style model capacity must not be applied automatically to every material.
01
Mild Steel Sheet
Prepare suitable thin panels, covers, brackets and enclosure blanks after confirming grade, tensile strength, thickness and cutting length.
02
Galvanized Steel Sheet
A small electric shear for galvanized sheet can prepare suitable HVAC, flashing and light-fabrication blanks after coating and base-metal review.
03
Aluminum Sheet
Confirm alloy, temper, thickness and surface requirements because aluminum behavior differs from mild steel.
04
Stainless Steel Sheet
Higher material strength means a 2mm electric sheet metal shear rating cannot be assumed for 2 mm stainless steel.
05
Copper Sheet
Review copper condition, thickness, cutting length and surface requirements before approving the blade clearance and machine model.
06
Brass Sheet
Soft and half-hard brass sheet may be reviewed when thickness, temper, cutting length and edge requirements suit the selected model.
Core Advantages
Why Choose a Q11G Small Electric Shear?
The design combines powered straight cutting, compact installation and straightforward mechanical construction for suitable everyday thin-sheet work.
Powered Cutting Reduces Manual Effort
The motor-driven cutting cycle reduces repeated pedal force when straight cuts are needed throughout the working day.
Compact Workshop Design
Published widths from 600 to 2500 mm let buyers match the machine to blank size and available floor space.
Simple Mechanical Drive
The motor, cycloidal pinwheel reducer, brake and mechanical transmission form a direct system for routine operation and maintenance.
Suitable for Repeated Daily Cutting
The listed 30 cycles per minute supports regular blank preparation; it is machine cycle frequency, not guaranteed finished-part throughput.
All-Steel Welded Body
The integral welded structure supports machine rigidity and operating stability.
Adjustable Back Gauge
A 500 mm published travel supports repeated fixed-size blank preparation.
Foot Control Keeps Hands Available
The foot control starts the powered cycle while the operator uses both hands to support and position the sheet before cutting.
Focused on Thin-Sheet Fabrication
The Q11G range is intended for confirmed light-gauge work in HVAC, roofing, signage, enclosures and general fabrication.
Lower System Complexity Than Hydraulic
The mechanical drive avoids a hydraulic power unit when the confirmed thin-sheet work does not require hydraulic capacity.
A Practical Middle Ground
It provides a powered alternative to manual shearing without moving directly to a larger hydraulic installation.
Machine Structure
Q11G electric sheet metal shear structure
01
All-steel welded machine body
Provides the rigid base for the compact shearing structure.
02
Guillotine-type lower drive
Transmits the direct shearing action used for suitable thin-sheet blanking.
03
Motor and cycloidal reducer
Combines the powered drive components in the published machine design.
04
Built-in brake and chain drive
Supports controlled transmission through the cutting cycle.
05
Upper and lower blade system
Uses high-alloy tool steel with four-sided cutting edges.
06
Adjustable back gauge
Provides 500 mm published travel across the listed compact Q11G rows.
Q11G Technical Specifications
Original Q11G model parameters
The table is rendered directly from the project product record. Capacity still depends on material grade, tensile strength, sheet thickness and the selected model.
| Model | Max. Shearing Thickness(mm) | Max. Shearing Width(mm) | Shearing Angle(deg) | Shearing Frequency(times/min) | Back Gauge Travel(mm) | Motor Power(kW) | Overall Dimensions(mm) |
|---|---|---|---|---|---|---|---|
| Q11G-2 x 600 | 2 | 600 | 1 deg 30 min | 30 | 500 | 3 | 1200 x 640 x 1100 |
| Q11G-2 x 800 | 2 | 800 | 1 deg 30 min | 30 | 500 | 3 | 1400 x 640 x 1100 |
| Q11G-2 x 1000 | 2 | 1000 | 1 deg 30 min | 30 | 500 | 3 | 1600 x 640 x 1100 |
| Q11G-2 x 1300 | 2 | 1300 | 1 deg 30 min | 30 | 500 | 3 | 1900 x 640 x 1100 |
| Q11G-2 x 1500 | 2 | 1500 | 1 deg 30 min | 30 | 500 | 3 | 2100 x 640 x 1100 |
| Q11G-2 x 1600 | 2 | 1600 | 1 deg 30 min | 30 | 500 | 3 | 2200 x 640 x 1100 |
| Q11G-1.5 x 2000 | 1.5 | 2000 | 1 deg 30 min | 30 | 500 | 3 | 2600 x 640 x 1100 |
| Q11G-1.2 x 2500 | 1.2 | 2500 | 1 deg 30 min | 30 | 500 | 3 | 3100 x 640 x 1100 |
Available Models and Cutting Widths
Available Q11G Models and Cutting Widths
Use maximum material thickness and required cutting width together. The longer models do not share the same published thickness as the 600–1600 mm entries.
01
Q11G-2 x 600 / Q11G-2 x 800
Published at 2 mm maximum thickness with 600 or 800 mm cutting width, 3 kW power and compact overall dimensions.
02
Q11G-2 x 1000 / Q11G-2 x 1300
Published 2 mm models for 1000 or 1300 mm cutting width and small-batch straight cutting.
03
Q11G-2 x 1500 / Q11G-2 x 1600
Published 2 mm models for wider 1500 or 1600 mm blanks while retaining the 3 kW listed motor power.
04
Q11G-1.5 x 2000 / Q11G-1.2 x 2500
Longer published widths with lower listed maximum thickness: 1.5 mm at 2000 mm and 1.2 mm at 2500 mm.
Machine Selection Comparison
Small Electric Shear vs Foot, Energy-Saving and Hydraulic Shears
The table separates power, capacity, volume, space, maintenance and buyer fit. The energy-saving model is compared separately below because its search intent and buying priority are different.
| Selection factor | Foot Operated Shear | Small Electric Shearing Machine | Hydraulic Shearing Machine |
|---|---|---|---|
| Power | Manual pedal operation | Electric motor, reducer, brake and chain drive | Electric motor and hydraulic system |
| Cutting capacity | Light-gauge manual work | Published 1.2–2 mm Q11G compact-model range | Higher force for medium or heavier sheet |
| Production volume | Occasional low-volume cutting | Daily small and mixed batches | Industrial batch and heavier-duty production |
| Workshop space | Small manual station | Compact powered-machine positioning | Larger installation and handling area |
| Maintenance | Simple mechanical maintenance | Motorized mechanical-drive maintenance | Hydraulic and electrical system maintenance |
| Typical buyer | Very low-volume user without electrical dependence | Small workshop needing powered thin-sheet cutting | Industrial buyer needing higher force or capacity |
Keyword Cannibalization Control
Small Electric Shear vs Energy-Saving Electric Shear
Both are electric shearing machines, but they serve different buying priorities. Use this compact Q11G page for size, small-batch and motorized-sheet-metal-shear intent.
| Selection factor | Small Electric Shearing Machine | Energy-Saving Electric Shearing Machine |
|---|---|---|
| Primary selection intent | Compact footprint, small workshop and Q11G compact widths | Reduced unnecessary power use, lower noise and operating-cost control |
| Typical production | Small and mixed thin-sheet batches | Daily energy-conscious workshop cutting |
| Capacity range | Published compact Q11G range from 1.2 to 2 mm | Separate larger Q11G range extending to higher published thicknesses |
| Buyer priority | Space, width choice and powered simplicity | Idle-power behavior, workshop noise and operating cost |
Complete Sheet Metal Workflow
Connect Cutting to Folding and HVAC Duct Forming
Use the electric shear for blank preparation before folding, lock forming, enclosure assembly or other confirmed sheet-metal steps.
Step 1
Cutting
Step 2
Folding
Step 3
Lock Forming
Step 4
Flange Forming
Step 5
Assembly
Manufacturing and Supply Review
Small Electric Shearing Machine Manufacturer
ZYRON reviews model, material, thickness, width and voltage before order confirmation. Buyers comparing a small electric shearing machine supplier, small electric shear manufacturer, electric sheet metal shear manufacturer or compact electric shearing machine manufacturer should confirm the same scope.
Q11G Model Selection
Match the published model range to material, thickness, cutting width, batch volume and available workshop space.
Assembly and Functional Testing
Review mechanical assembly, controls, transmission, blades, back gauge and configured operating functions.
Voltage Configuration Review
Confirm destination voltage and frequency before the electrical configuration is approved.
Export Packing and Technical Support
Prepare confirmed accessories, documentation and packing for the destination and shipping route.
Buyer Questions
Small Electric Shearing Machine FAQ
What is a small electric shearing machine?
It is a compact powered shear for straight cutting of suitable thin sheet. The Q11G design uses an electric motor, reducer, brake and mechanical transmission instead of manual pedal or hydraulic power.
What is an electric sheet metal shear used for?
It prepares straight blanks for HVAC ducts, roofing, signs, electrical cabinets, light fabrication and other small-batch sheet-metal work.
What thickness can a small electric shearing machine cut?
The published compact Q11G rows range from 1.2 to 2 mm depending on cutting width. Q11G-2 models cover widths up to 1600 mm, while the listed 2000 and 2500 mm models have lower published maximum thicknesses. Material strength must also be confirmed.
Which Q11G model should I choose?
Choose from material and grade, thickness, required cutting width, daily volume, back-gauge requirement, floor space and voltage. Do not select only from the 2 mm label.
Can a small electric shear cut galvanized sheet?
Galvanized sheet is a listed application, but the coating, base-metal grade, tensile strength, thickness and width must match the selected model.
Is a small electric shear suitable for HVAC duct fabrication?
Yes, it can prepare confirmed galvanized blanks before folding, lock forming, flange forming and duct assembly. It does not replace those downstream machines.
What is the difference between a small electric shear and an energy-saving electric shear?
The small electric page emphasizes compact footprint, small workshops, small batches and the compact Q11G range. The energy-saving page emphasizes reduced unnecessary power use, lower noise and operating-cost control.
What is the difference between an electric shear and a hydraulic shear?
A compact electric shear uses a motorized mechanical drive for suitable thin-sheet work. A hydraulic shear provides greater shearing force and is generally selected for heavier material or more demanding production, with a more complex hydraulic system.
How much does a small electric shearing machine cost?
Small electric shearing machine price depends on model, material, thickness, cutting width, voltage, configuration, destination and shipping requirement. Request a confirmed quotation rather than relying on an unverified fixed price for a small electric shearing machine for sale.
